hackpads/froppiipad/README.md
View file

@ -4,17 +4,18 @@
- 7 keys?
- Spinny EC11 Encoder!
- SK6812 MINI-E LEDs
- 128x32 Screen
- KMK Firmware
## PCB
This took a while because ive never made pcbs before but it turned out to be quite fun to do
![schematic](https://cdn.hack.pet/slackcdn/716a40262c6d875acb9f50b3eeaeb520.jpg)
![pcb](https://cdn.hack.pet/slackcdn/70a6f9aa96fa064bab21b8c2ae2ffafd.jpg)

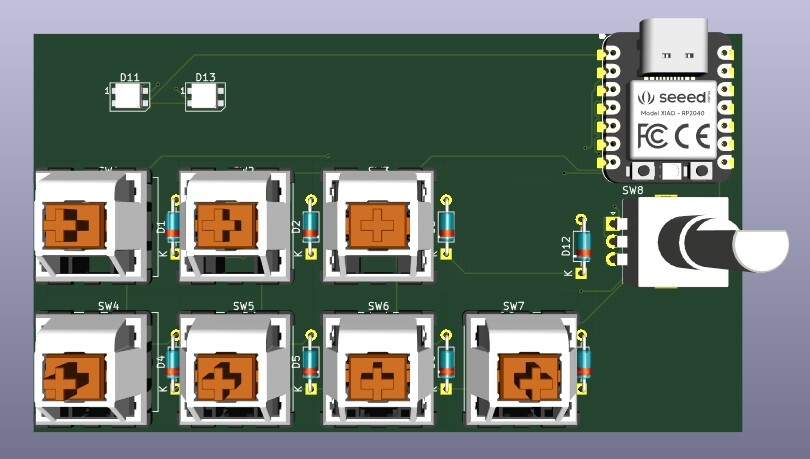

![pcb-render](https://cdn.hackclubber.dev/slackcdn/1b84480f70a50b8a63a31a91773dce8b.jpg)
![schematic](https://cdn.hackclubber.dev/slackcdn/d47cd24b70cf3cafb89db724f7720674.png)
![pcb](https://cdn.hackclubber.dev/slackcdn/01bd2f0ded94cca537916dba99575849.png)
![pcb-render](https://cdn.hack.pet/slackcdn/2123ccfb717511cbe22fe937b8080796.png)
## CAD
The CAD!
![cad](https://cdn.hack.pet/slackcdn/055138575e1939f95037d4dc502938e6.jpg)
![cad](https://cdn.hack.pet/slackcdn/a1bca2f1730139263cc8c720c1c12d6d.png)
## Firmware
Made with KMK! You can find it somewhere in the froppiipad folder
@ -24,6 +25,7 @@ Made with KMK! You can find it somewhere in the froppiipad folder
- 7x Blank DSA keycaps
- 7x Cherry MX switches
- 1x EC11 Encoder
- 1x 0.91 OLED Display
- 2x SK6812 MINI-E LEDs
- 1x PCB - black
- 8x Through-hole 1N4148 Diodes
