Purpose

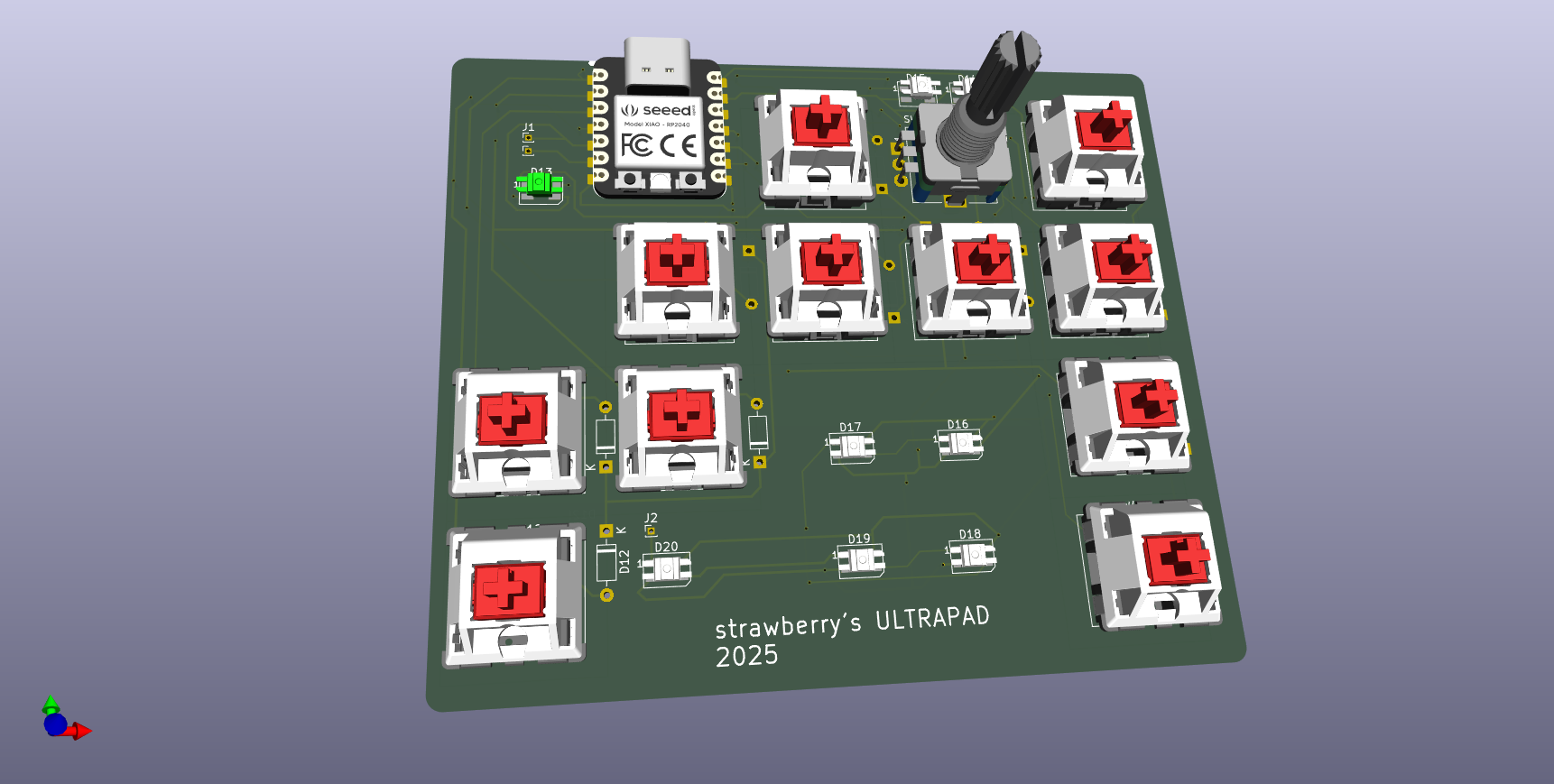

12-key macropad intended for ultrakill gaming has all movement keys, macro for knuckleblaster punch without swapping, rotary encoder for weapon swapping and an extra key for a Railcannon has RGB diodes intended for showing things like style/hard damage (if i can implement that) I made it mainly because school keyboards suck and i wanted to P-rank in spite of that
BOM
- Xiao RP2040 (THT?)
- 11x Cherry MX switches
- 11x Blank keycaps (8 blue, 3 red if possible)
- 1x EC11E rotary encoder with switch
- 11x THT 1N4148 diodes
- 8x SMD SK6812MINI RGB diodes
- 4x M3 16mm screws
- 4x M3 heatset inserts
Pictures:
case:
PCB:
render:
schematic:
