Perihelion ⌨️

Perihelion is a 4 key macropad with a OLED display and RGB underglow, made for Hackclub's HackPad YSWS.

This is my first time using KiCad, so I had a lot of trouble with designing the PCB and wiring it correctly. That's also the reason as to why the Macropad is extremely simple. If there will (ever) be a Perihelion v2, I really want to add more to it!

Renders

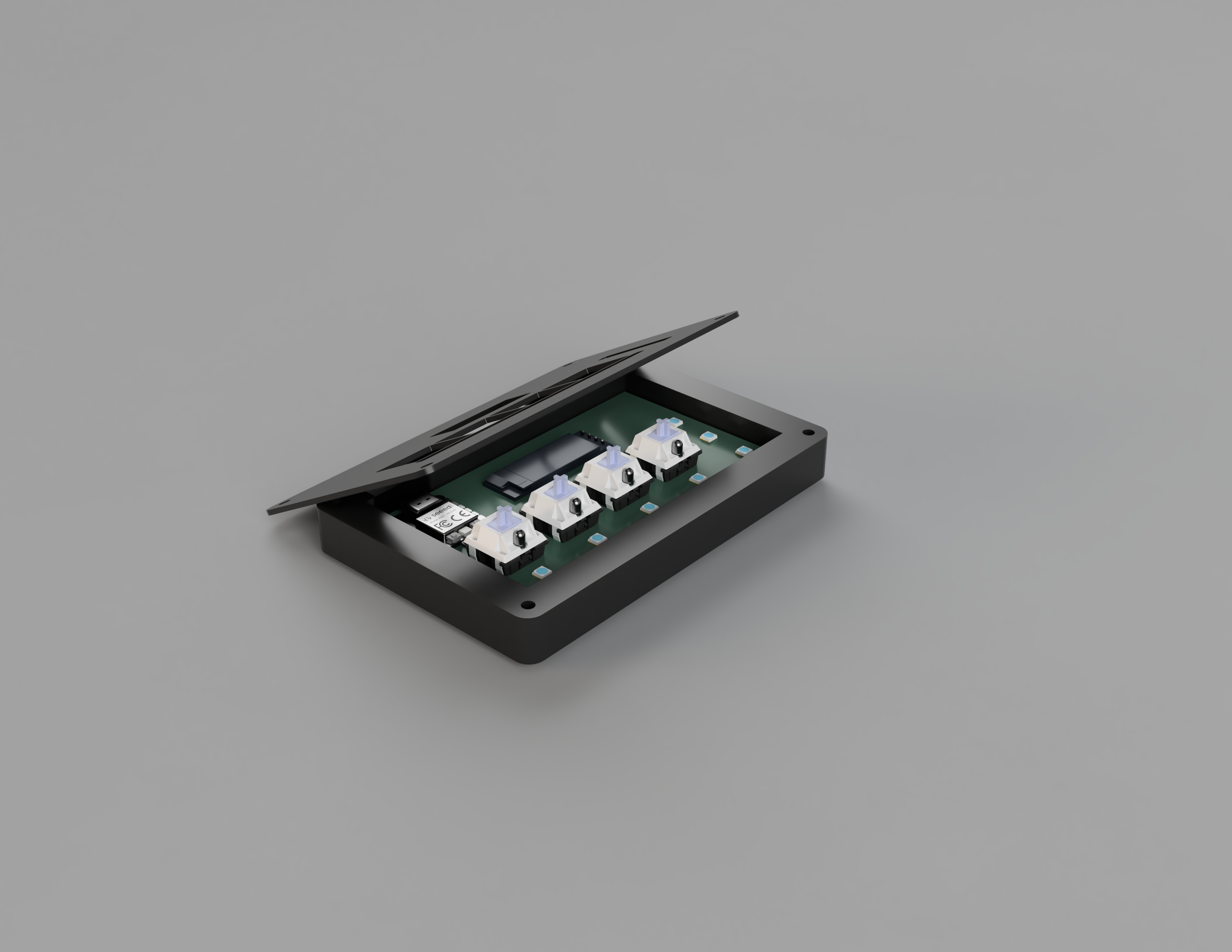

Perihelion Macropad with top part opened

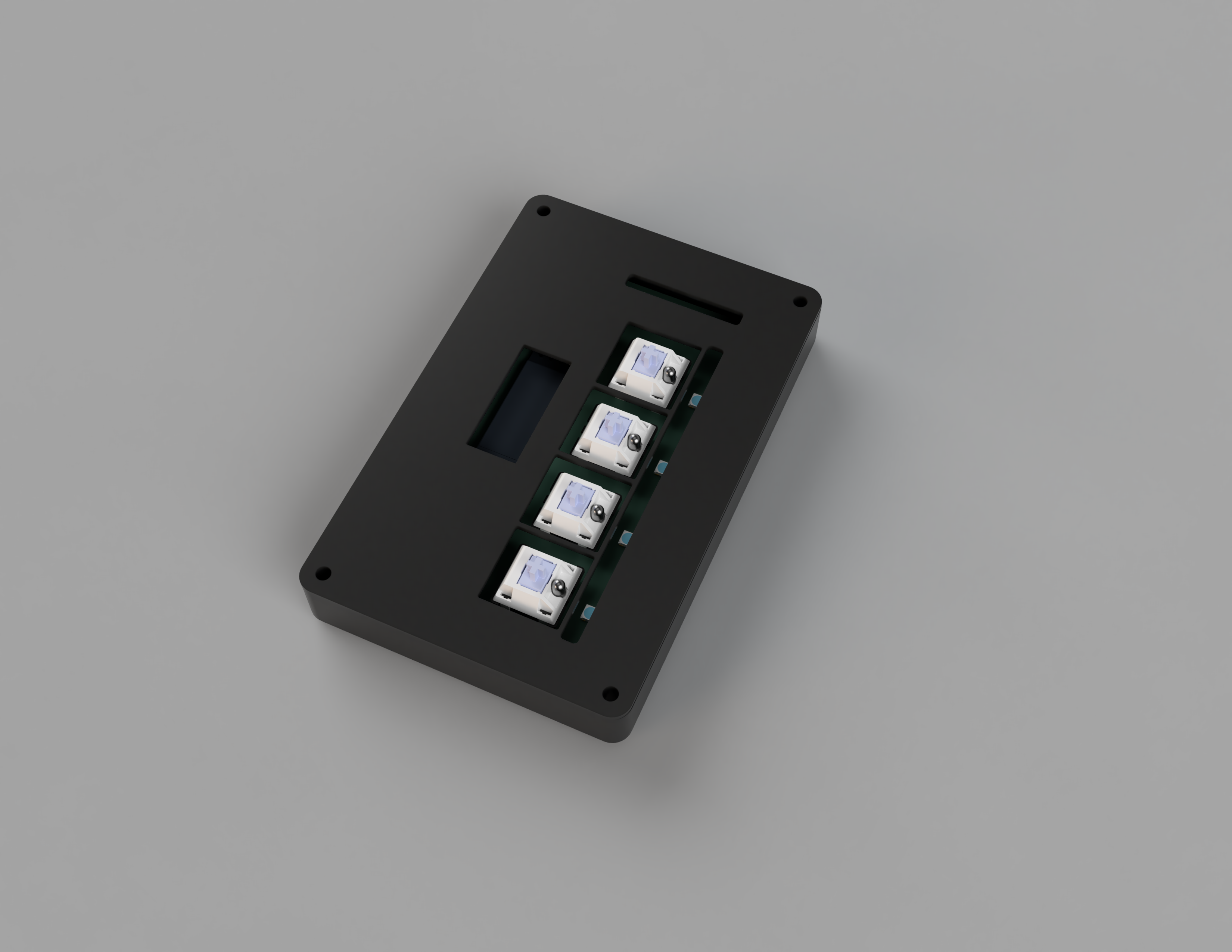

Perihelion Macropad with top part closed

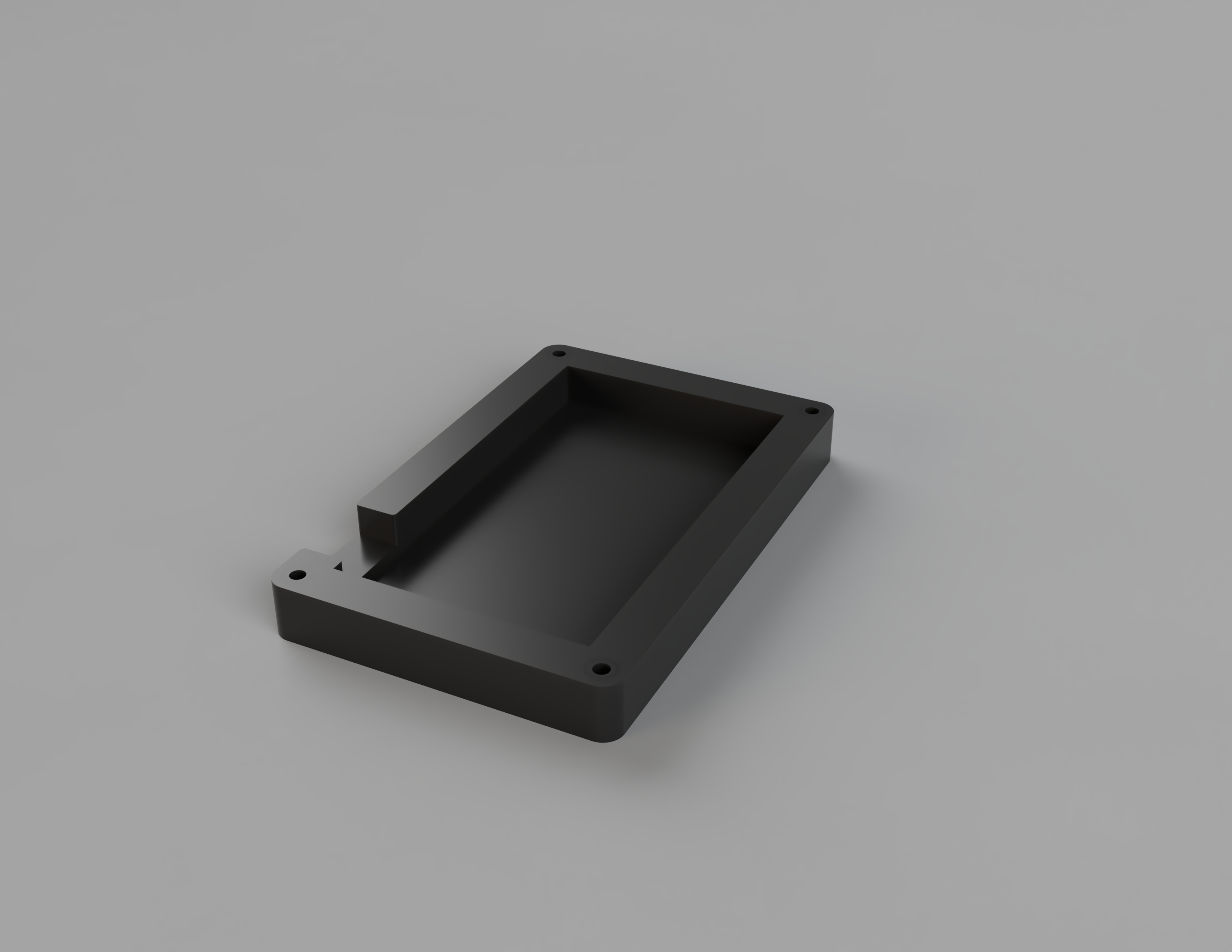

Perihelion Bottom Case

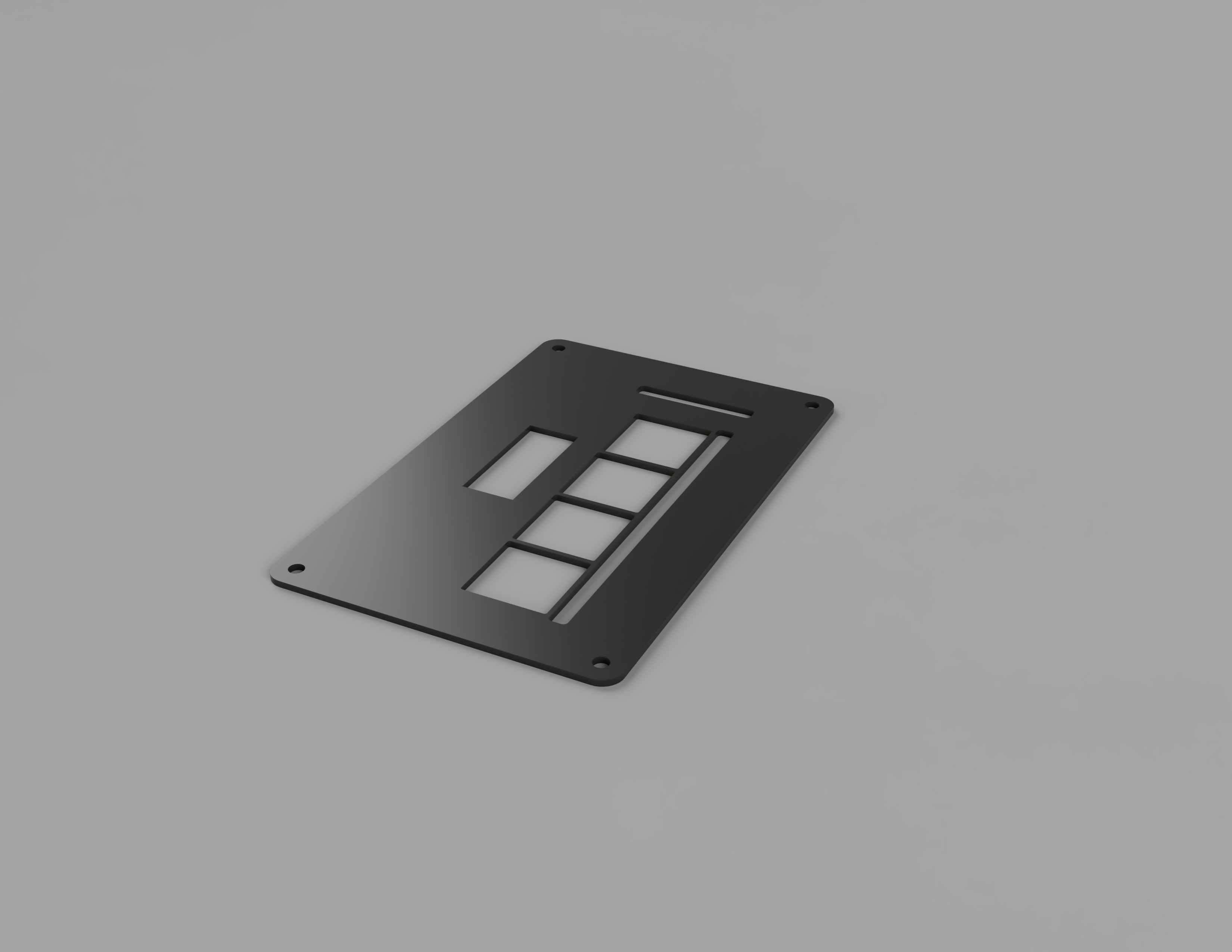

Perihelion Top Case

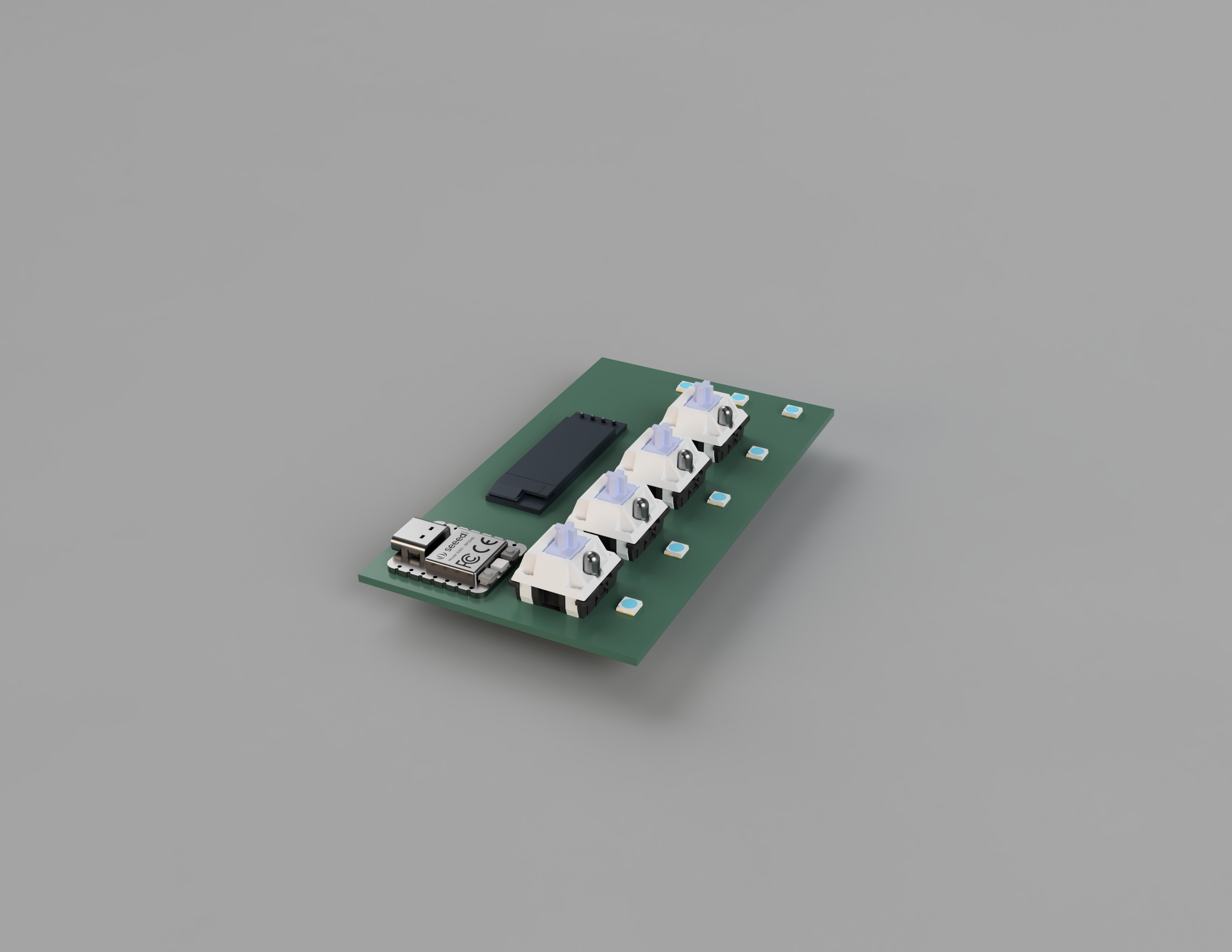

Perihelion PCB

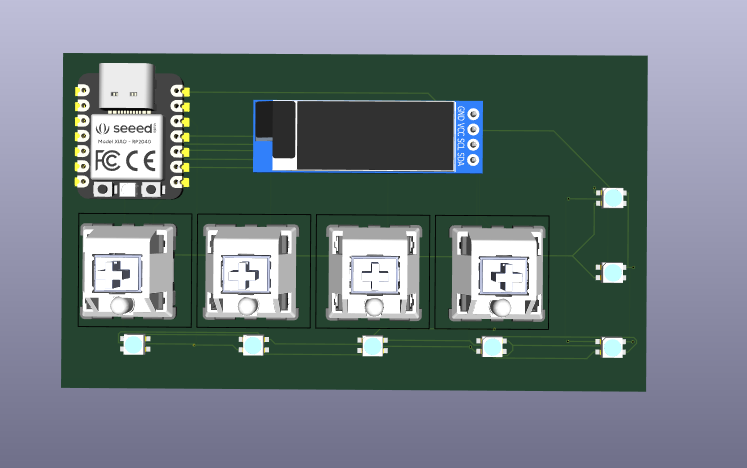

KiCad PCB Front Render

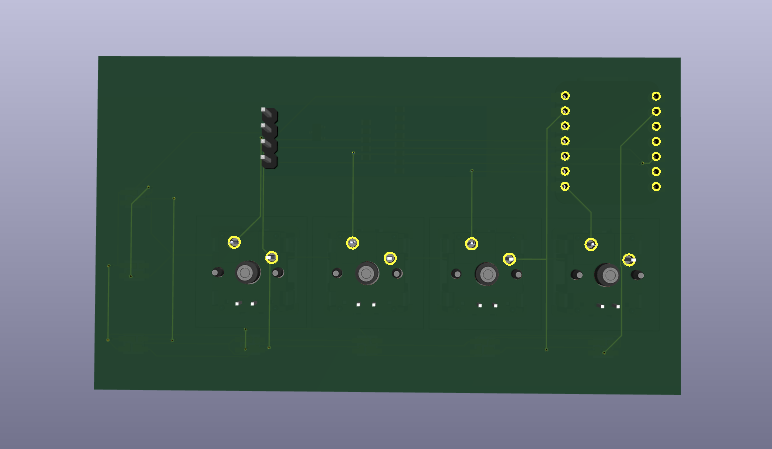

KiCad PCB Back Render

BOM (Bill of Materials)

Everything you need to build your own Perihelion Macropad can be found in BOM.md.

Features

  • 4 key macropad
  • OLED display
  • RGB underglow
    • 7 SK6812MINI LEDs
  • Multiple Button Modes!

Software

This macropad is powered by KMK, a fork of QMK. KMK allows you to get the following with the macropad:

  • Multiple button modes! (layers)
  • LED Control!
  • Custom keymaps for macros!
