Ye's Control Pad

Inspiration

I wanted to create a simple macropad. FullRender

Challenges

I'm had a lot of difficulties with cadding, espiecally using fusion, so I try and did it in onshape.

Specifications

BOM:

  • 12x Cherry MX switches
  • 1x EC11 Rotary Encoder
  • 12x Through-hole 1N4148 Diodes
  • 1x 0.91" OLED
  • 4x M3x5mx4mm heatset inserts
  • 4x M3x16mm screws

Others:

  • KMK Firmware
  • top - Part1.stl
  • bottom - Part1.stl

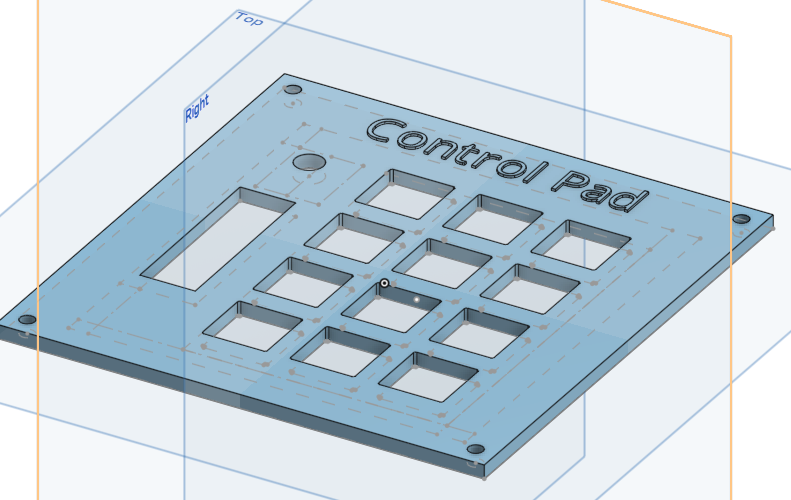

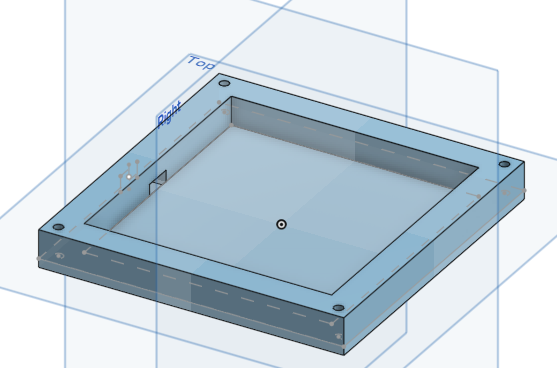

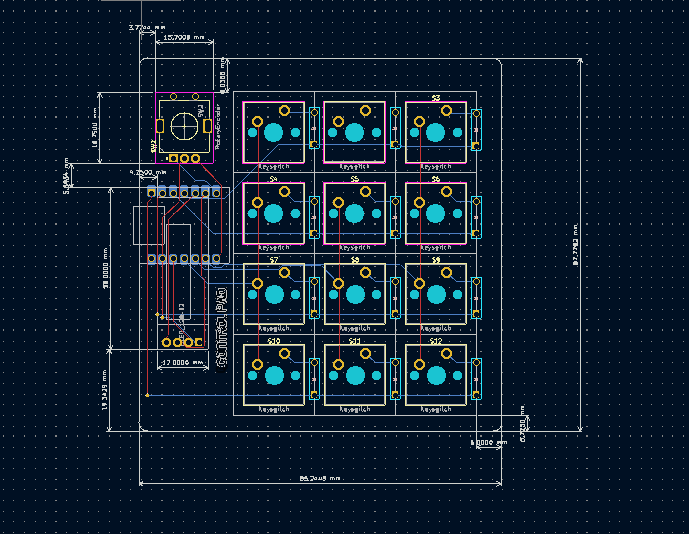

Schematic PCB Case
Schematic PCB Case 1
Case 2
