Epad

This is my submission for Hackpad V2!

Inspiration

I was inspired by a macropad that I saw in a YouTube video a while back. It looked really cool so I tried to replicate it as best as I could from memory.

Challenges

My biggest challenge was getting everything to line up correctly. I know I spent a long time just getting every hole at the top lined up with the switches.

Features

  • 12x cherry mx keys
  • 1x rotary encoder switch
  • KMK firmware

PCB

Schematic PCB

CAD

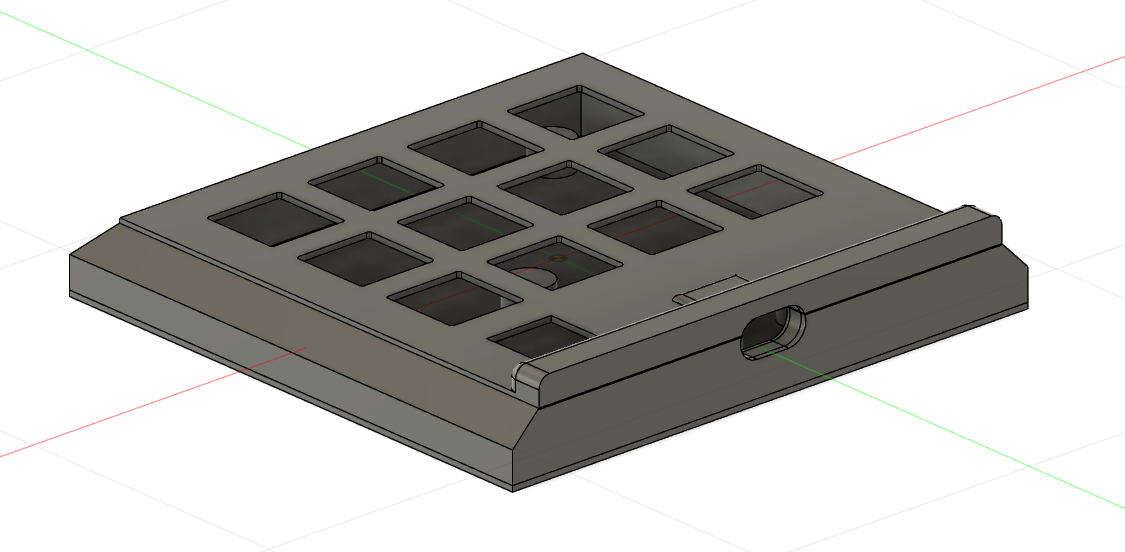

Designed with Fusion 360. The guide helped a ton!

Firmware

Made using KMK Firmware

BOM

  • 1 XIAO-RP2040
  • 12x Cherry MX Switches
  • 12x White keycaps
  • 12x 35_SOD27_P7.62mm diodes
  • 1x Rotary Encoder Switch
  • 4x 8mm deep 3.332mm wide 4mm size m4x0.7 screws
  • 1x knob for the rotary encoder
