Dorian macropad

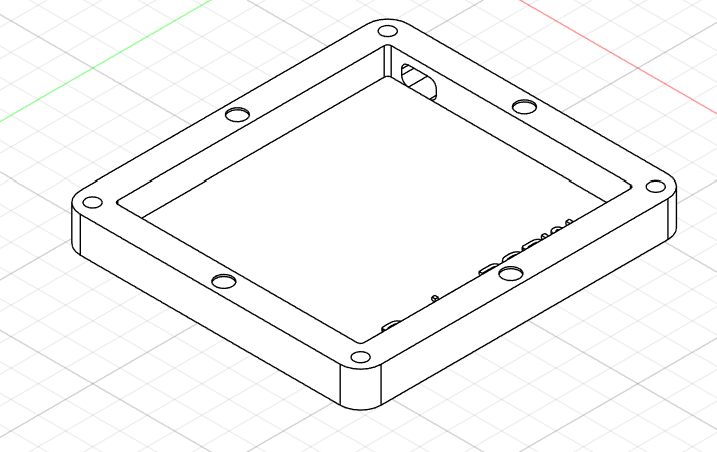

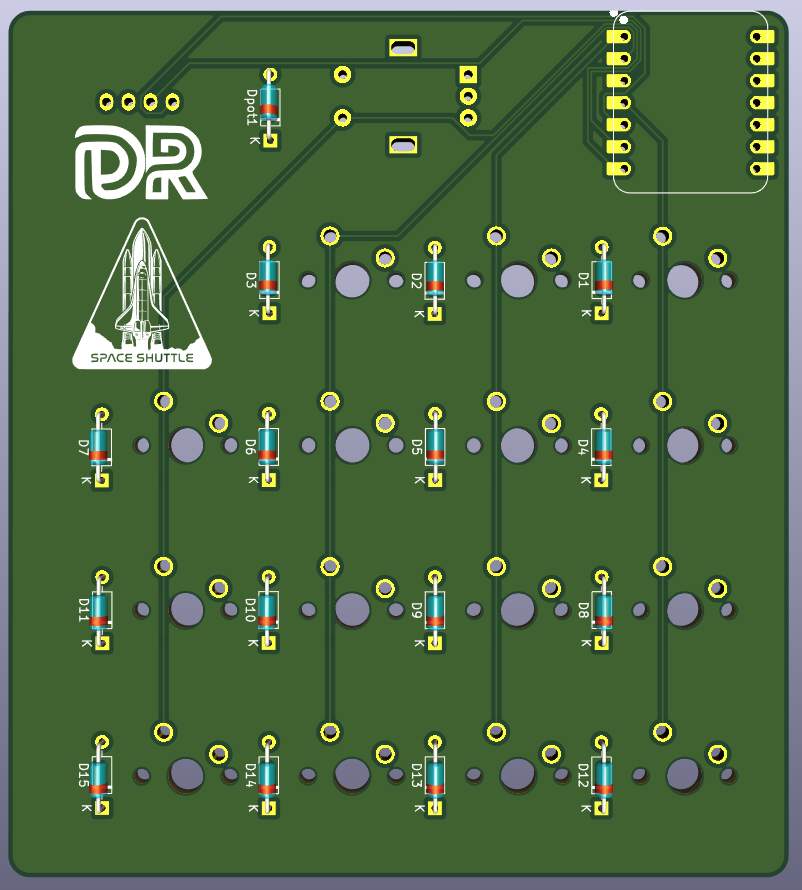

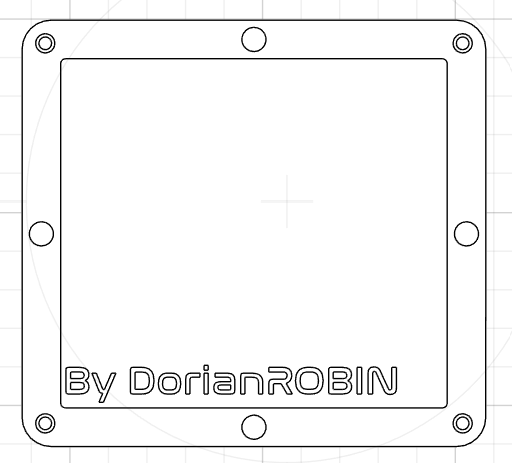

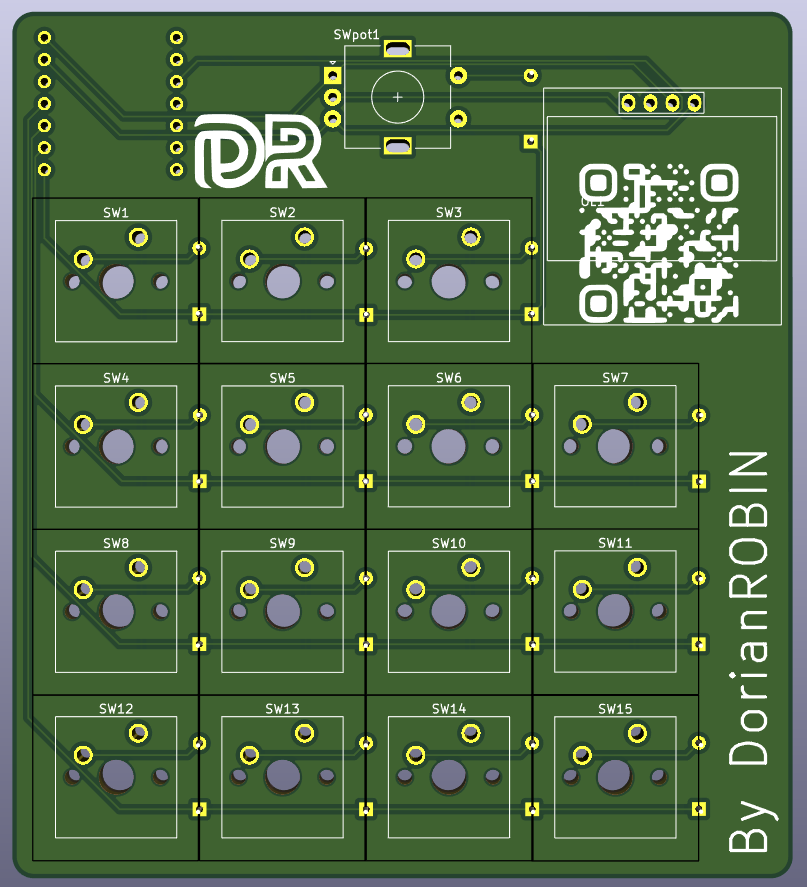

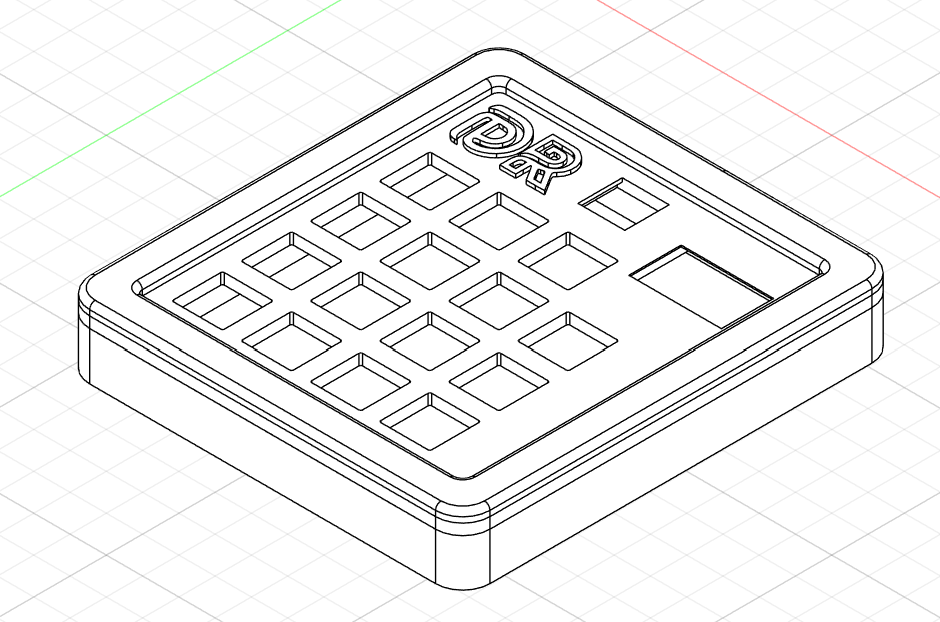

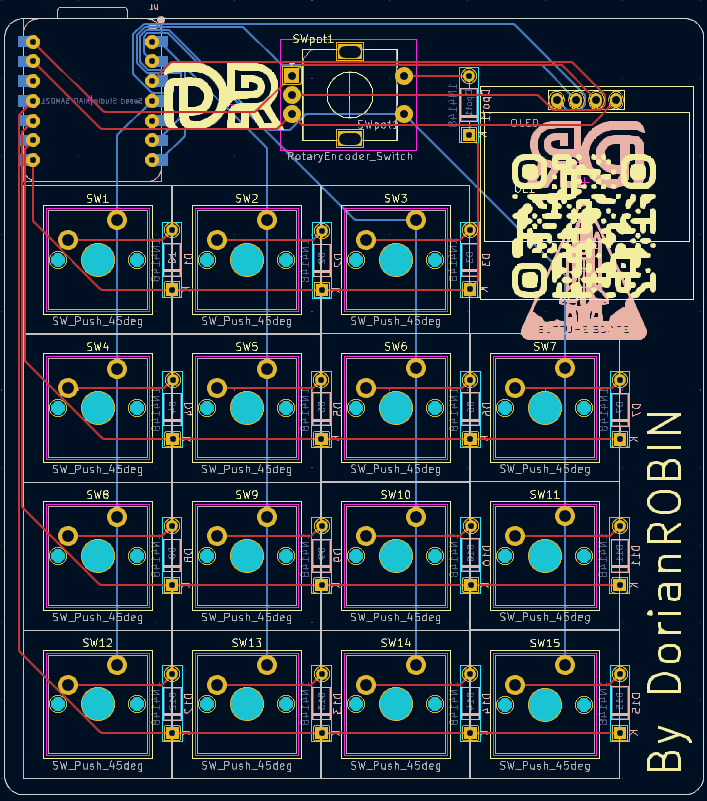

macropad screenshot macropad screenshot macropad screenshot macropad screenshot macropad screenshot macropad screenshot macropad screenshot macropad screenshot macropad screenshot I made this macopad to use some softwares like Fusion360, Blender, or even to play some games, with a few keys and macros.

BOM

  • 1x Seeed XIAO RP2040
  • 15x gateron milky yellow MX switches
  • 15x keycaps (if possible 7 white and 8 red)
  • If possible, print in black filament (and if possible, the top part in red)
  • 1x EC11 rotary encoder
  • 1x 0.96 inch OLED display
  • 16x 1N4148 diodes
  • 4x M3x5mx4mm heatset inserts
  • 4x M3x16mm screws
  • 4x M3 hex nuts
