yetAnotherMacropad

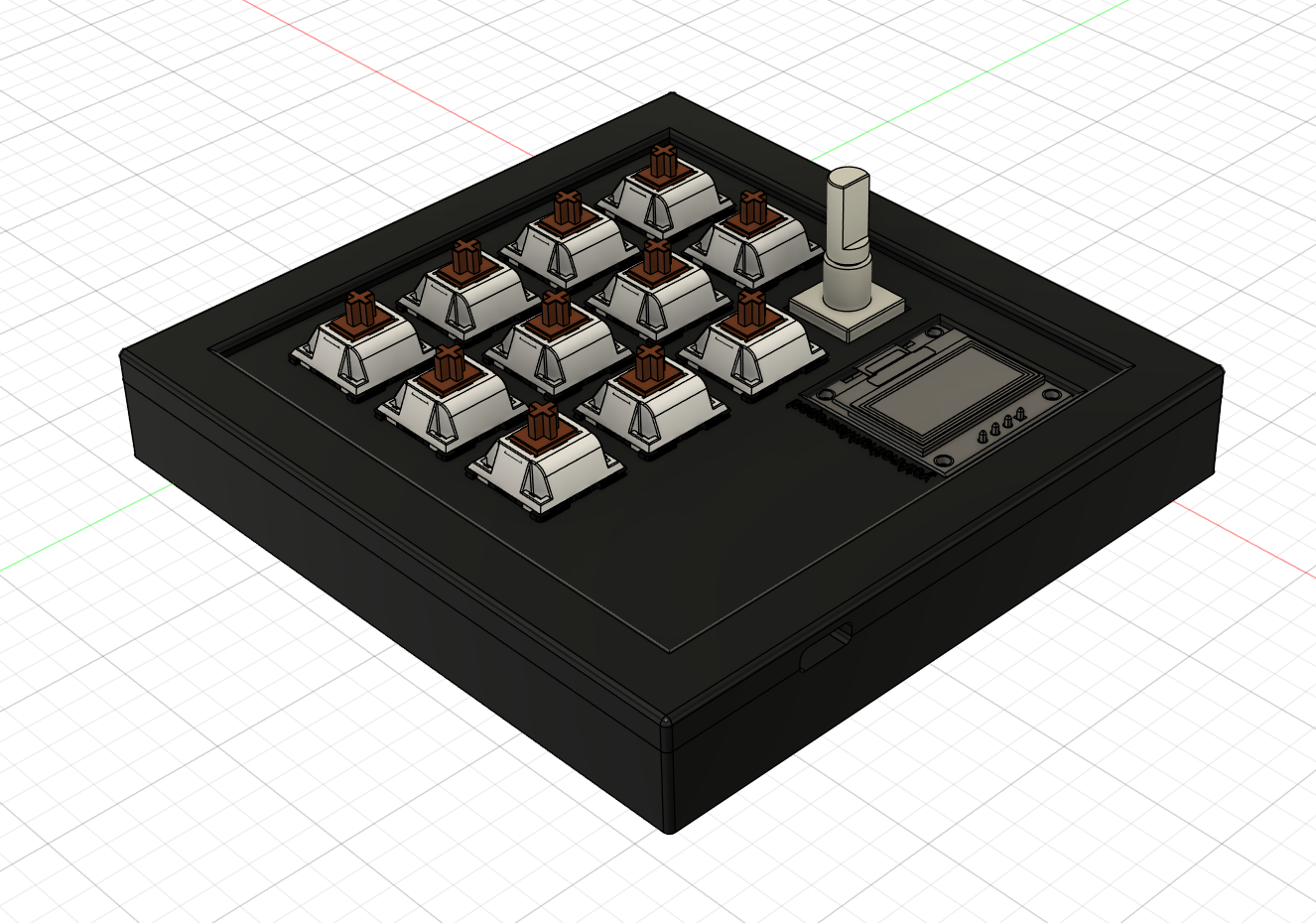

It's just another macropad. 3D Render of yet another macropad

Will it work? Who knows. I sure hope it does though, I spent ages designing this.

BOM

For the macropad

  • 11x Cherry MX switches (red please, I don't really care if it's silent or not. If none are available then black is fine too.)
  • 1x EC11 Encoder
  • 12x 1N4148 Diodes (through hole)
  • 1x 0.96" DM-OLED096-636 display
  • 4x M3x5mx4mm heatsets
  • 4x M3x16mm screws

The Macropad

  • 3D printed case (black if available please)
  • 11x Black blank DSA keycaps
  • 1x Seeed Studio XIAO RP2040 (obviously)

Sticker as well? Maybe?

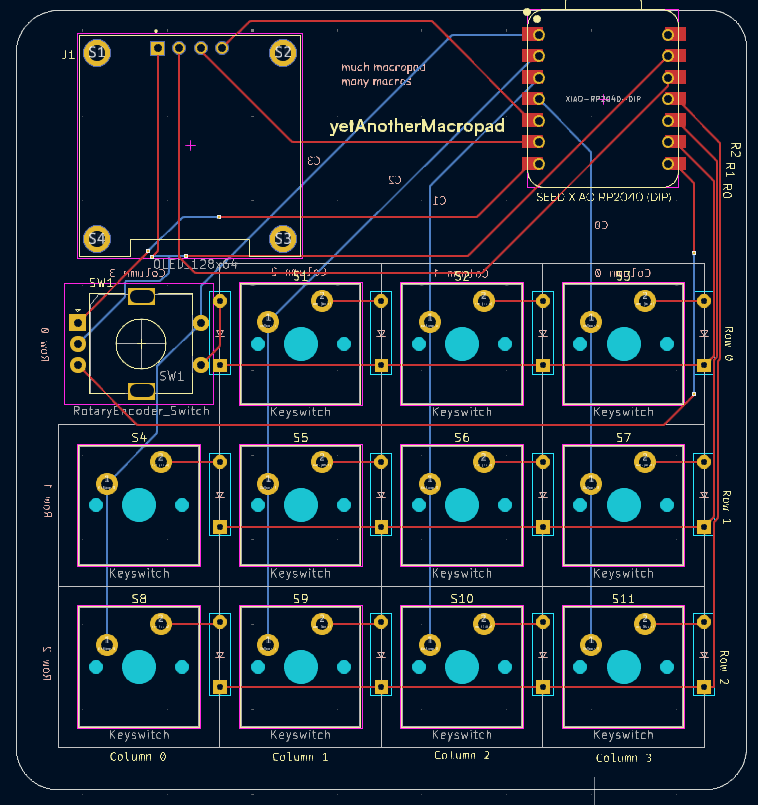

Schematic PCB Case
Sch PCB Case
